• RS232 Input option: DB9 or RJ11.
• RS485/RS422 output option: terminal or RJ11.
• RS232 to RS485 or RS232 to RS422 conversion.
• Four full Duplex wires; two half duplex wires.
• Switch setting for full duplex or half duplex operation.
• Auto Baud Rate Sensing.
• Supports transfer speeds of up to 115.2Kbps.
• Extends up to 4000ft / 1200m (under 100Kbps).

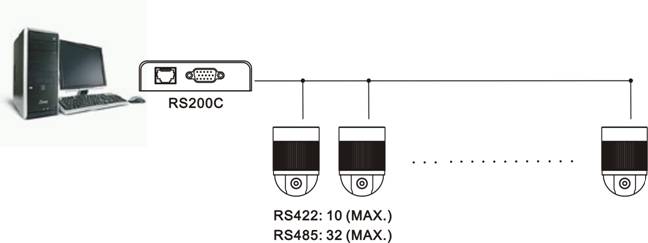

• Support up to 32 units to be set in RS485 multi drop installations.
• LEDS indications for power and signal status monitoring.
• Over current protection when 2 signals are shortened together at the RS422/485 end.
• Surge Protection 16KV ESD.
• Built in termination resistors.
• Power supply included.

OKINA USA Cabling Systems and Solutions provides an answer for all your cabling needs. Our complete line of baluns allows you to easily extend your current audio/video/data system up to 1200ft and even up to 8000 ft, with an active balun.

OKINA USA Baluns are perfectly suited for applications such as these:
CCTV Security Systems
CCTV Surveillance Systems
CCTV Cameras
Home Theatre
LCD/CRT Monitors
Televisions
VGA Monitors
DVD Players
PCs (Personal Computers)
Laptops/Notebooks
USB and PS/2 Devices
UTP (Unshielded Twisted Pair Cable)
BNC (Coaxial Cable)

How does a balun work?
Baluns are used to convert between "Balanced and Unbalanced" electrical signals.
Baluns work by transforming the original unbalanced (video/power/data/etc) signal to a balanced frequency used by a different cable, like CAT5 UTP. Not only does this reduce interference, but it also allows you to transmit a signal much longer than the original application would allow. Baluns are always utilized in pairs. One balun is needed to convert the original signal to a new frequency, and another balun is used at the other end to revert to the original frequency.

"Passive" Video Baluns do not require power, and can extend a signal up to 2000ft (B/W)
"Active" Video Baluns require power, but can extend a signal up to 8000ft (B/W)
