SS10W-C100HP
- 1/2.8" Sony CMOS CCD, 1000 TV Lines
- 10x Optical Zoom, 10x Digital Zoom (Max 100x Zoom
- 5~50mm focal length
- 0.01 lux (color) / 0.001 lux (B&W)
- 360° Endless Pan ; 180° Auto-flip Tilt ; 95° Normal Tilt
- 256 Presets ; RS-485 Communication
- Pelco-D & Pelco-P Selectable protocols
- Built-in OSD
- 12V DC
| Economy Type PTZ Controller PTZ-KB050 |
 |
|
 |
| Model | SS10W-C100H | ||
| Mount Type | Arm Type Wall Mount | ||
| Image Sensor | 1/2.8" Sony CMOS |
||
| Effective Pixels | 1280(H) x 720(V) |
||
| Resolution | 1000 TV Lines |
||
| S/N Ratio | 60 dB (Enhanced) |
||
| Zoom | x10 Optical Zoom ; x10 Digital Zoom |
||
| Focal Length | 5~50mm |
||
| Min. Illumination | Color to B&W, Color: 0.01Lux, B&W: 0.001Lux |
||
| Shutter Speed | 1/50 ~ 1/120,000 sec |
||
| White Balance | Auto |
||
| Back Light Compensation (BLC) | On / Off |
||
| Focus | Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function |
||
| Presets | 256 |
||
| Patrol Track | 4 groups, each can record 200 actions |
||
| Cruise Track | Total 30 presets can join cruise, can setting the presets' residence time |
||
| Other Scan | Support Horizontal scan, deuce area scan, scan random |
||
| Rotation Range | Horizontal 360° unlimted rotation, Vertical 90°, Auto reversal |
||
| Rotation Speed | Horizontal & Vertical Min 0.01°, Max 200°/S |
||
| Communication | RS-485 |
||
| Protocol | Pelco-D, Pelco-P |
||
| OSD | Yes |
||
| Rated Power | 12V DC / 2A |
||
| Temperature Control | Built-in |
||
| Operation Temperature | -4˘XF ~ 122˘XF / -20˘XC~50˘XC (Select temperature control accessories) |
||
| Humidity | <95% RH |
||
| Material | Aluminum Shell |
||
| Dimension | 5.12 (Ø) x 8.66(H) inches / 130 (Ø) x 220 (H) mm | ||
* Specifications and appearance are subject to change without notice

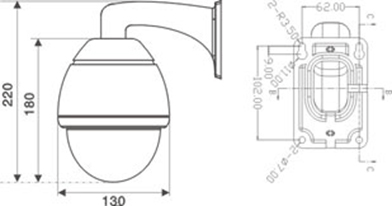

Dimensions:
