D&N LPC Camera w/ 11 IR LED Illuminator Housing & Bracket
SIR-754AILP-IO kit
SIR-754AILP-IOP kit
Features:
Camera ¡V SHM-7540LPDN-IO
  • 1/3¡¨ Sony Super HAD CCD II
  • Sony HQ-1 DSP, 540 TV Lines
  • 5.0mm~60.0mm Auto Iris Lens
    Made in Japan
  • 0.08 Lux @ F1.0
  • I/O Input/Output
  • Mechanical IR Cut Filter (ICR)
  • Built-in Auto Sens-up
  • High Gain/Low Noise Amplifier - DNR
  • Advanced 8-step Manual Shutter
  • CAR-DC Iris Control is available to achieve reliable license plate recognition for road surveillance when car speed is up to 90 mi/hr (150 km/hr) in the daytime and 90 mi/hr (150 km/hr) at night time with external IR LEDs.
  • Dual Power 12V DC / 24V AC


Housing & Bracket ¡V HI11-TKHBL
  • 11 Super Power IR LED, 6pcs x 25¢X / 5pcs x 45¢X
  • IR Distance up to 395ft / 120m ▲
  • User Adjustable IR LED Intensity (VR)
    Factory Default 80% ♦
  • Fully-Cable Managed Bracket
  • Uses professional rust-proof stainless steel screws
  • IP66 Rating, Heater & Blower, I/O
  • 24V AC, 60VA (Power Ready Plug for 12V DC Camera)
▲ NOTE 1: IR light distances are entirely dependant upon environmental site conditions and the location at which the unit is situated. The type of camera being used is also very important.

♦ NOTE 2: Factory default for the IR LED activation level is 80%. If there is not enough IR light, adjust the VR level to maximum 100%.

Specifications:
CAMERA
Model
SHM-7540LPDN-IO
SHM-7540LPDN-IOP
TV System
NTSC
PAL
Image Sensor
1/3¡¨ Sony Super HAD CCD II
DSP
Sony HQ-1
Total Pixels
811(H) x 508(V)
795(H) x 596(V)
Video Output
1.0Vp-p Composite / 75ohms
Resolution
540 TV Lines
Minimum Illumination
0.08 Lux @ F1.0
Color mode automatically switches to B/W mode under 2 Lux
IR Sensitivity
700~1100nm
Mechanical IR Cut Filter (ICR)
External controlled by D&N IO; Color (IN: 0V or normal open) / D&N (In: 5~12V DC or normal close)
Electronic

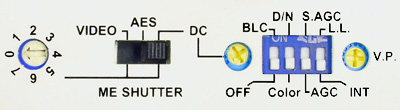

Shutter Speed
AES: 1/50(60) sec ~ 1/100,1000 sec
(0) 1/100(120) sec (1) 1/190 sec (2) 1/350 sec (3) 1/610 sec (4) 1/1120 sec (5) 1/2000 sec (6) 1/3240 sec (7) 1/4000 sec
Intelligent Shutter Speed
Capturing license plate for vehicle speeds up to 90 mi/hr (150 km/hr) in the daytime and 90 mi/hr (150 km/hr) at night with external IR LEDs
Back Light Compensation
ON/OFF Switchable
Auto Gain Control
AGC / Super AGC
Auto White Balance
AWB
Day/Night
Mechanical IR Cut Filter (ICR) D/N / COLOR Switchable
I/O
Yes
DNR / Sens-up
Automatic; High Gain/Low Noise Amplifier
Scan System
2:1 Interlace
Synchronization
Internal/Line Lock (AC Version Only)
S/N Ratio
More than 50dB (S.AGC OFF)
Adjustment VR
DC Level, L.L. V-phase
Automatic IRIS ; Connector
Video/DC ; D4 IRIS Jack
Lens Mount
CS/C (with adaptor)
Power Supply
12V DC / 24V AC
Power Consumption
3.0W
Operation Temperature
14¢XF ~ 122¢XF / -10¢XC ~ 50¢XC
Storage Humidity
RH 80% or less
Storage Temperature
-4¢XF ~ 140¢XF / -20¢XC ~ 60¢XC
Dimension
4.72¡¨(L) x 2.36¡¨(W) x 1.97¡¨(H), 120mm(L) x 60mm(W) x 50mm(H)
Weight
0.88 lbs / 400g

HOUSING
Model
HI11-TKHBL
LED Quantity
11 Super Power IR LEDs
IR LED Beam Angle
6pcs 25¢X / 5pcs x 45¢X
IR Wave Length
850nm
IR Distance
395ft / 120m ▲
IR Light On/Off
Auto Light Sensor Control
Heater Control
64¢XF / 18¢XC (on) ; 82¢XF / 28¢XC (off)
Blower Control
95¢XF / 35¢XC (on) ; 77¢XF / 25¢XC (off)
IP Rating
IP66
Temper Glass Thickness
4mm
Mounting Bracket
Full-Cable Management
Construction
Die-Cast Aluminum Alloy
Coating
Ivory Powder Stove
Required Power Supply / Transformer*
24V AC (+/-10%), 60VA
Power Consumption
16 Watts
Dimension
16.73¡¨(L) x 6.30¡¨(W) x 6.50¡¨(H) 425mm(L) x 160mm(W) x 165mm(H)
Camera Space
7.87¡¨(L) x 4.33¡¨(W) x 4.53¡¨(H) 200mm(L) x 110mm(W) x 115mm(H)
Weight
7.72 lbs / 3500g (w/out bracket) 11.75 lbs / 5330g (with bracket)
* Specifications are subject to change without notice
*Power Supply / transformer not included
