Wall Mount
Ceiling Mount
- RS485, Buad Rate 2400bps, 4800bps, 9600bps
- Auto Search & Track on Moving Objects
- Up to 4 Alarm Inputs
- 0~255 Addresses, Pelco D/P Protocols
- 9~12V DC
- Built-in Heater & Blower (Wall & Ceiling Mount Only)
- 1/4” Sony Exview HAD CCD, Sony Zoom Module
- 530 TV Lines
- 36x Optical Zoom, 12x Digital Zoom
- 3.4mm~122.4mm Tamron Lens / F1.6~F4.5
Lens Made in Japan - Mechanical IR Cut Filter (ICR)
- Pan Speed: 0.4¢X ~ 300¢X per sec. / Pan Range: 360¢X
- Tilt Speed: 0.4¢X ~ 150¢X per sec. / Tilt Range: 0¢X ~ 90¢X
- 4 Programmable Tours w/ Max. 24 Presets / 4
- Patterns up to 180s
- RS485, Multiple Protocol (Pelco D and P)
- 7 Alarm Inputs, 2 Alarm Outputs
- 128 Presets
- 24V AC, 24~60VA for Outdoor
| Model | SEMW36HB-VT53DN |
| Signal Format | NTSC |
| Image Sensor | 1/4" Sony Exview HAD CCD |
| Resolution / DSP | 530 TV Lines, Wide Dynamic Range / Sony |
| Video Signal | 1.0V p-p (Sync Negative), Y/C Output |
| Scanning System | Progressive |
| Minimum Illumination | Day: 1.4 Lux (1/50), 0.1 Lux (1/3) ; Night: 0.01 Lux (1/3) |
| Mechanical IR Cut Filter (ICR) | Yes |
| Zoom | 36x Optical Zoom / 12x Digital Zoom |
| Lens | 3.4mm~122.4mm Tamron Lens / F1.6~F4.5 (Made in Japan) |
| View Angle | 48¢X (Wide End) / 2.8¢X (Tele End) |
| S/N Ratio | More than 50dB |
| Focus | Auto / Manual |
| White Balance | Auto / Manual (ATW, Indoor, Outdoor, One Push WB, Manual WB) |
| Electronic Shutter Speed | 1 ~ 1/10,000 sec. |
| Iris Control | Auto / Manual / Auto Slow Shutter |
| Gain Control | Auto / Manual (-3 to 28dB, 2dB steps, 16 steps) |
| Pan Speed / Pan Range | 0.4° ~ 300° per sec. / 360° |
| Tilt Speed / Tilt Range | 0.4° ~ 150° per sec. / 0° ~ 90° |
| Communication | RS485, Multiple Protocol, Coax |
| Preset Positions | 128 Presets |
| Auto Pan | Yes, between 2 presets |
| Tour / Sequence | 4 Programmable Tours with Max. 24 Presets / 4 Patterns up to 180s |
| Alarm Input | Up to 4 Alarm Inputs |
| Mount Option | Wall or Ceiling |
| Heater & Blower | Built-in |
| Power | 24V AC / 24~60VA (Outdoor) |
| Operating Temperature | -40°F ~ 140°F / -40°C ~ 60°C (Outdoor) |
| Dimension | 6.56(O) x 10.5(H) inches / 200(O) x 320(H) cm |
* Specifications and appearance are subject to change without notice

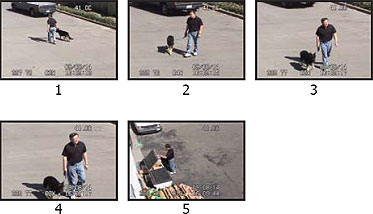

Auto Tracking Screen Captures:
