IR Day & Night Weatherproof Color Camera
with 3-AXIS Cable Management Bracket
EIR48X-42VF
EIR56X-42VF515
EIR48X-42VFP
EIR56X-42VF515P


Features:
EIR48X-42VF / EIR48X-42VFP EIR56X-42VF515 / EIR56X-42VF515P
  • 1/3¡¨ Sony CCD
  • 420 TV Lines
  • 48 IR LED
  • Aluminum Shell
  • 4.0mm~9.0mm Vari-Focal Lens
  • 0 Lux @ IR ¡§on¡¨
  • IR Distance 30~130ft / 10~40m
  • Weatherproof IP65 Rating
  • Power Polarity Reverse Protection
  • 110mA @ IR LED ¡§off¡¨ / 430mA @ IR LED ¡§on¡¨
  • 12V DC
  • 1/3¡¨ Sony CCD
  • 420 TV Lines
  • 56 IR LED
  • Aluminum Shell
  • 9.0mm~22.0mm Vari-Focal Lens
  • 0 Lux @ IR ¡§on¡¨
  • IR Distance 130~160ft / 40~50m
  • Weatherproof IP65 Rating
  • Power Polarity Reverse Protection
  • 120mA @ IR LED ¡§off¡¨ / 525mA @ IR LED ¡§on¡¨
  • 12V DC
Specifications:
Model
EIR48X-42VF
EIR48X-42VFP
EIR56X-42VF515
EIR56X-42VF515P
TV System
NTSC
PAL
NTSC
PAL
Image Sensor
1/3¡¨ Sony CCD & DSP
Total Pixels
510(H) ¡Ñ 492(V)
500(H) ¡Ñ 582(V)
510(H) ¡Ñ 492(V)
500(H) ¡Ñ 582(V)
Video Output
1 Vp-p 75 £[
Resolution
420 TV Lines
Minimum Illumination
0 Lux @ IR ¡§on¡¨
S/N Ratio
More than 52dB
Electronic Shutter
Automatic
Synchronization
Internal
Gamma Control
0.45
Gain Control
Automatic
White Balance
Automatic
Back Light Compensation
Automatic
IR LED
48 IR LED
56 IR LED
IR Wavelength
850nm
IR LED Life
Average 20,000 hours
IR Working Distance
30~130ft / 10~40m
130~160ft / 40~50m
Lens
4.0mm~9.0mm Vari-Focal Lens
9.0mm~22.0mm Vari-Focal Lens
IP Rating
Weatherproof IP65
Power Supply
12V DC
Power Consumption
110mA @ IR LED ¡§off¡¨ / 430mA @ IR LED ¡§on¡¨
120mA @ IR ¡§off¡¨ / 525mA @ IR ¡§on¡¨
Operation Temperature
-4ºF ~ +122ºF / -20ºC ~ +50ºC

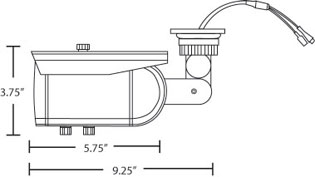

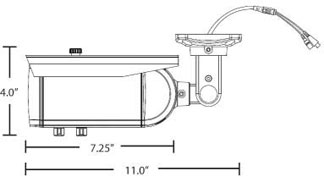

Dimension
9.25¡¨(L) x 3.375¡¨(W) x 3.75¡¨(H)
234.9(L) x 85.7(W) x 95.2(H) mm
(with sunshield cover & bracket)
11.0¡¨(L) x 3.5¡¨(W) x 4.0¡¨(H)
279.3(L) x 88.8(W) x 101.5(H) mm
(with sunshield cover & bracket)
Weight
1.2 lbs / 544g
1.6 lbs / 725g
* Specifications are subject ot change without notice
EIR48X EIR56X
